Shear Load Connectors

Ancon Solutions to Joints

In most cases doweled or keyed joints can be replaced by joints incorporating Ancon shear load connectors. These connectors are more effective at transferring load and allowing movement to take place, easier to fix on site and can prove a more cost-effective solution. Ancon connectors can be used for joints in floor slabs, suspended slabs, and for replacing double columns and beams at structural movement joints. Applications in civil engineering include joints in bridge parapets, bridge abutments and diaphragm wall construction. The Lockable Dowel is suitable for use at temporary movement joints in post-tensioned concrete.

Traditional Construction Joints

Ancon Engineered Solutions

Dowel Bar

Ancon DSD

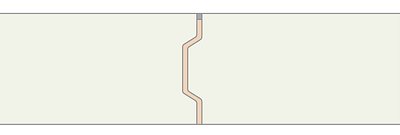

Traditional Construction Joints

Slip Joint

Ancon DSD

Structural Movement Joint

Double Columns

Ancon DSD

Floor to Wall Connection

Corbel Support

Ancon DSD

Temporary Movement Joint

Slab-to-Slab Pour Strip

Ancon Locking Pin

Temporary Movement Joint

Slab-to-Slab Pour Strip

Slab-to-Slab Pour Strip

Ancon Lockable Dowel





Temporary Movement Joint

Slab-to-Wall Pour Strip

Ancon Lockable Dowel
